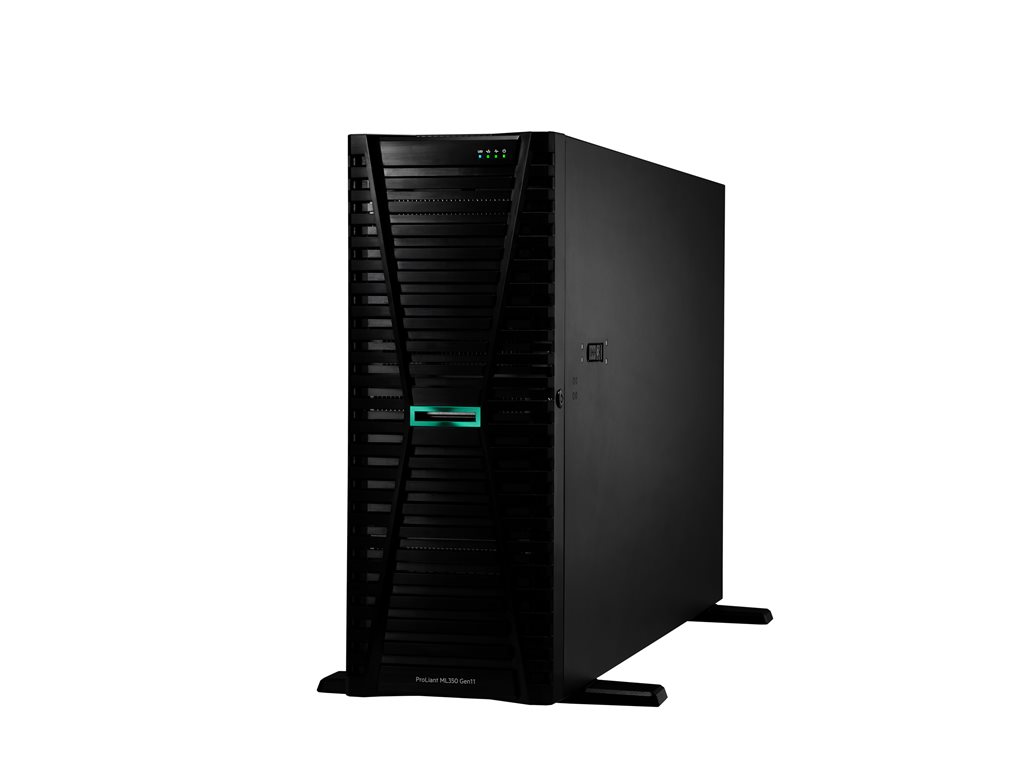

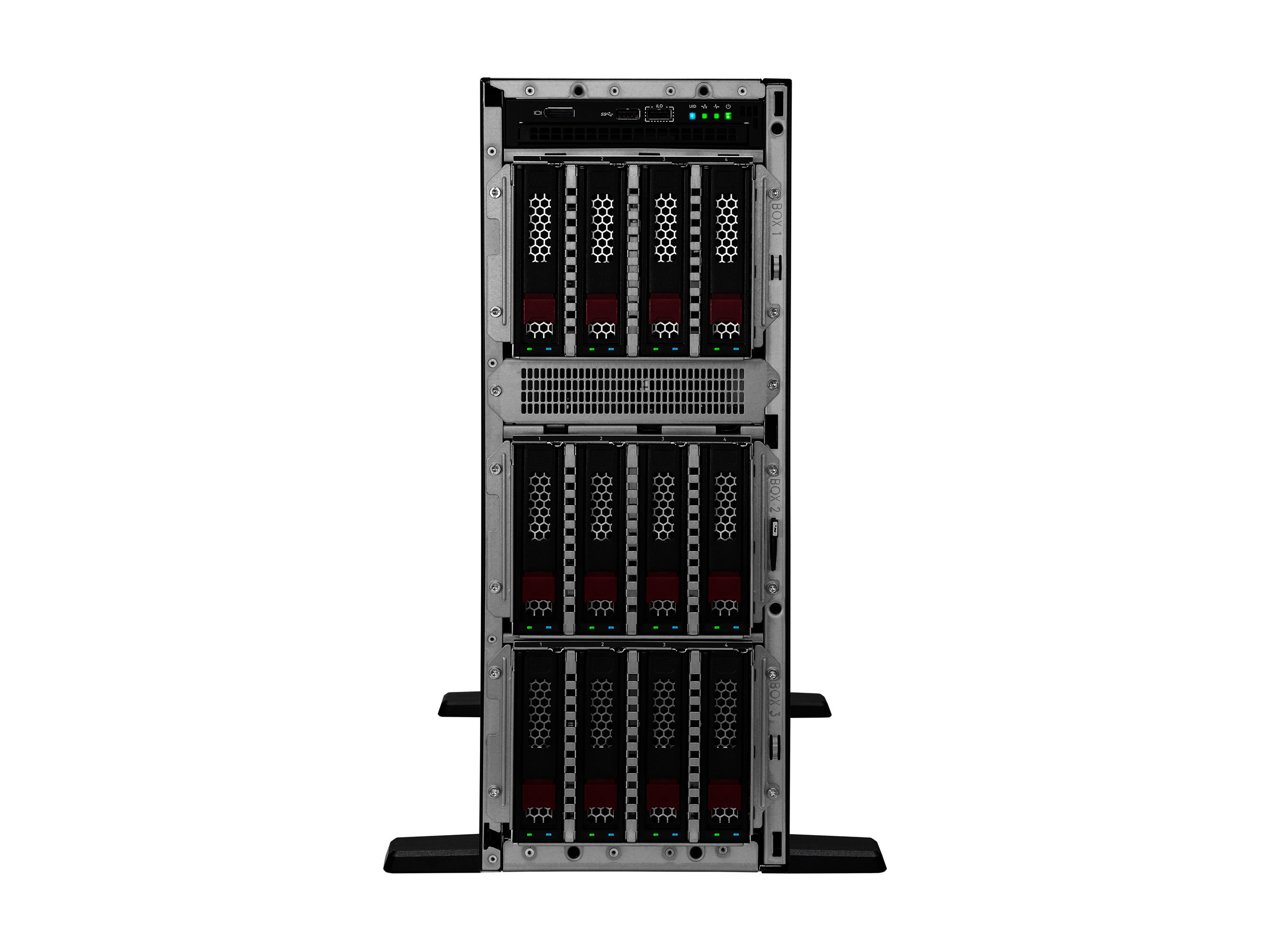

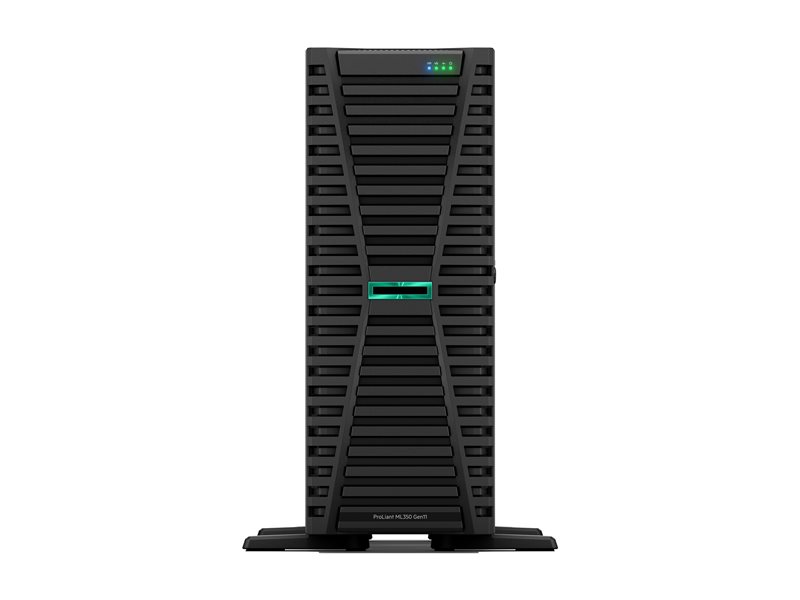

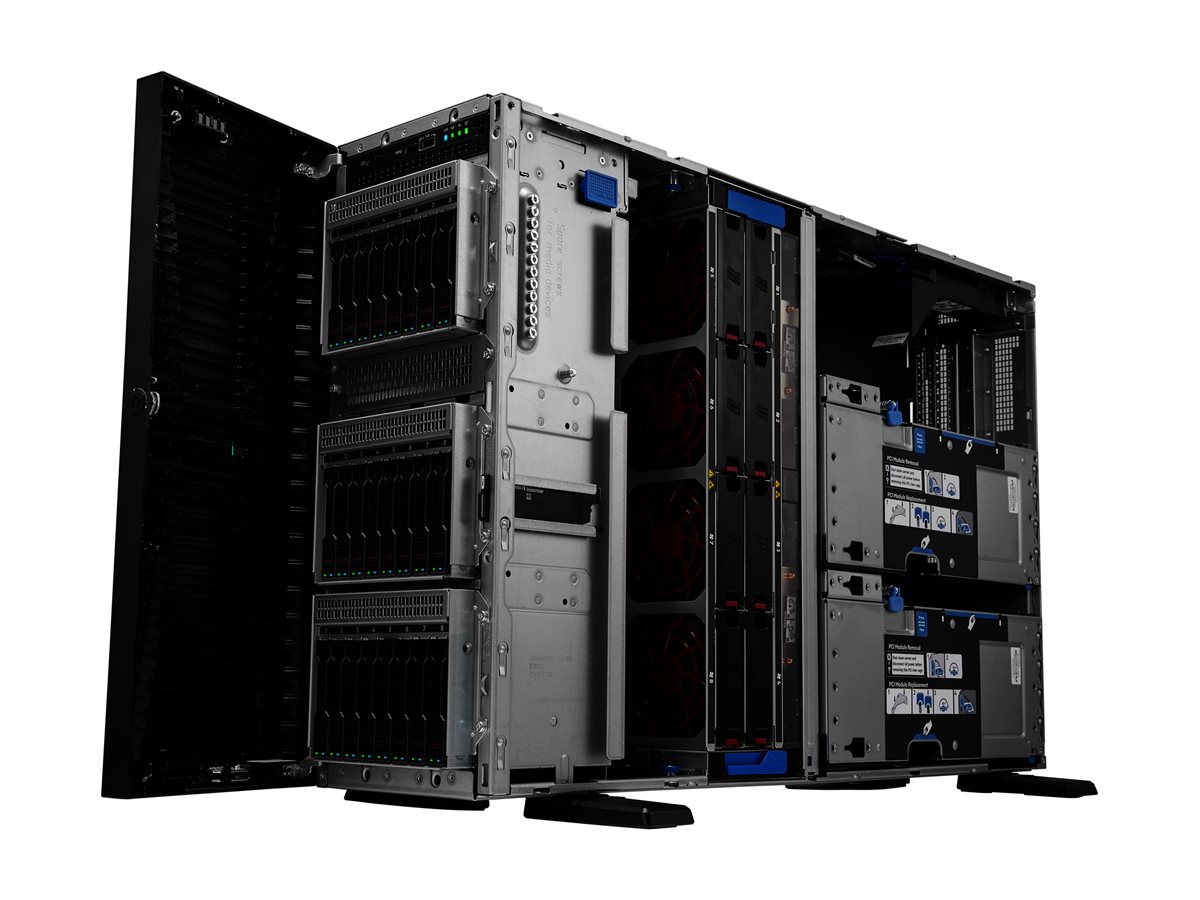

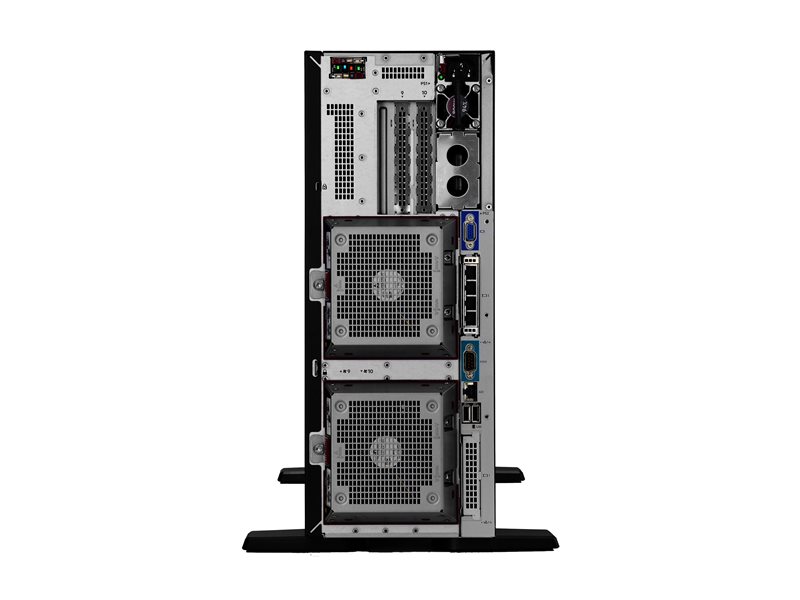

Hewlett Packard Enterprise - HPE ProLiant ML350 Gen11
Server - tower 4U - 1-way - 1 x Xeon Gold 5416S - RAM 32 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none
Hewlett Packard Enterprise
P55953-001
N/A
0190017611358
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant ML350 Gen11 - tower Xeon Gold 5416S 2 GHz - 32 GB - no HDD |
| Type | Server - tower |
| Height (Rack Units) | 4U |
| Localization | Region: Worldwide |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon Gold 5416S / 2 GHz (16-core) |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 8 TB (max) - DDR5 SDRAM - Advanced ECC |
| Storage Controller | RAID (SATA 6Gb/s) (Intel VROC SATA Software RAID) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Software Included | HPE OneView Standard (free download), HPE iLO Standard with Intelligent Provisioning, HPE OneView Advanced |
| Dimensions (WxDxH) | 6.9 in x 28 in x 18.2 in |
| Weight | 54.52 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: Worldwide |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 4 (total) / 4 (free) x PCIe 5.0 x16 (x8 mode) |
| Interfaces | 1 x VGA ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - RJ-45 ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 top) ¦ 1 x USB 2.0 (1 bottom) ¦ 1 x HPE iLO - Type A (1 in front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 8 x redundant fans |
| Theft/Intrusion Protection | Padlock eye, security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UEFI, ErP Lot 9, FIPS 140-3, ACPI 6.1 |
| RAM | |
| Installed Size | 32 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 31 (empty) |
| Features | Registered, slots 17 - 32 are available in two-processor configuration only, HPE SmartMemory, 8-channel memory architecture |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, SMASH CLP |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Intel VROC SATA Software RAID |
| Channel Qty | 14 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE OneView Standard (free download), HPE iLO Standard with Intelligent Provisioning, HPE OneView Advanced |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 28 in |
| Height | 18.2 in |
| Weight | 54.52 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23 in |
| Shipping Depth | 38.8 in |
| Shipping Height | 12 in |
| Shipping Weight | 74.58 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 5416S |
| Clock Speed | 2 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
