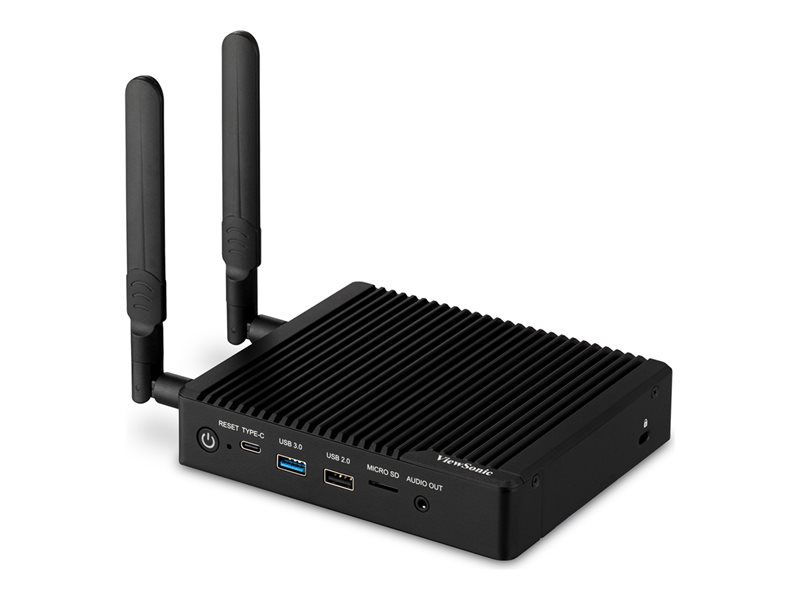

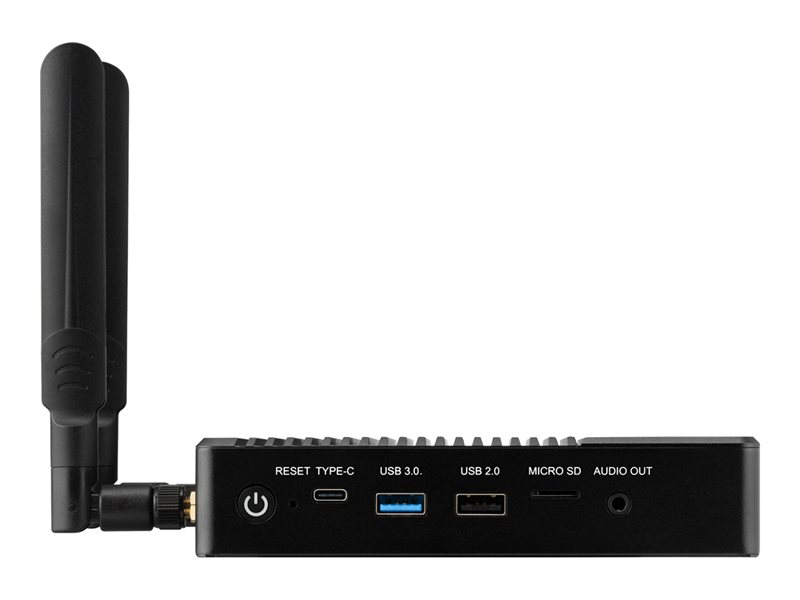

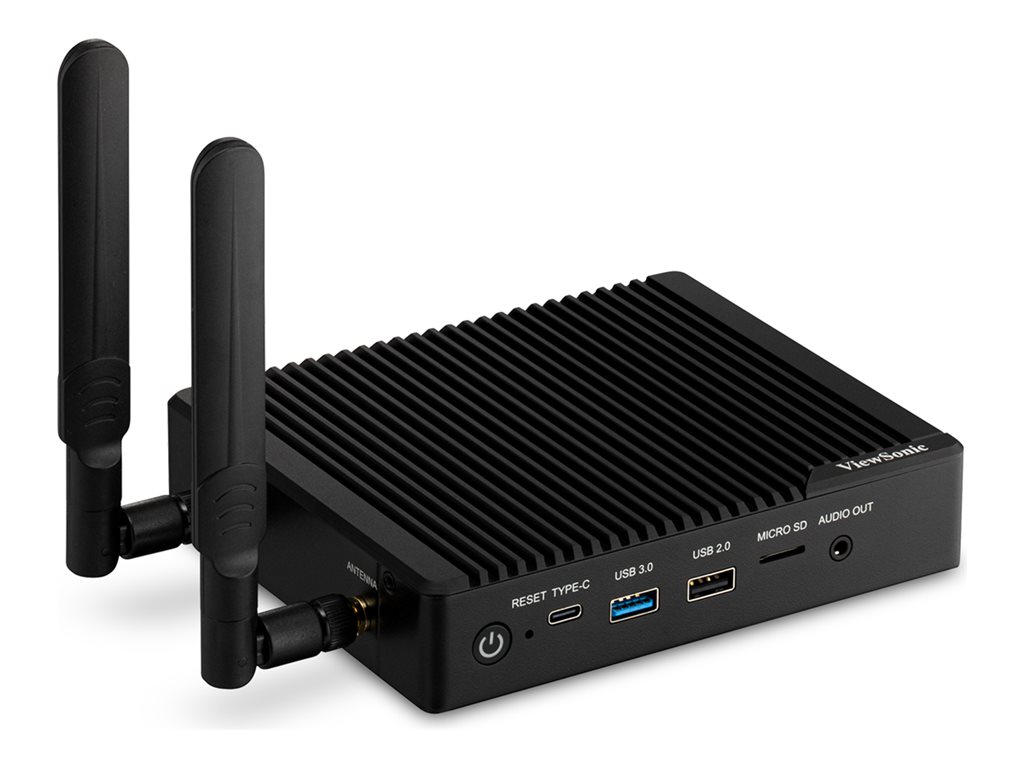

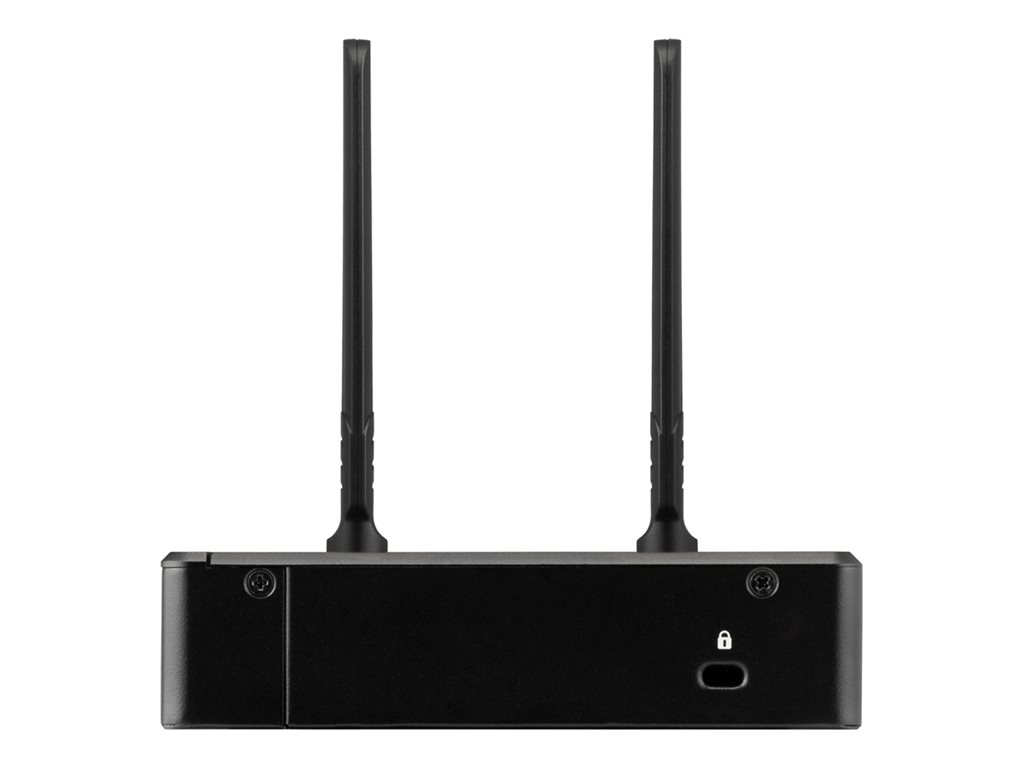

ViewSonic - ViewSonic ViewBoard Box VBS200-A
Digital signage player - 4 GB RAM - ARM - 16 GB - Android 11
ViewSonic
VBS200-A
N/A
0766907019469
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ViewSonic ViewBoard Box VBS200-A - digital signage player |
| Device Type | Digital signage player |
| Dimensions (WxDxH) | 6 in x 5 in x 1.3 in |
| Processor | ARM Cortex-A55 Quad-Core x 1 |
| RAM | 4 GB |
| Hard Drive | 16 GB |
| Flash Memory Cards Supported | microSD |
| Interfaces | USB 2.0, serial, USB 3.0, HDMI, DisplayPort, Ethernet, Wi-Fi, Bluetooth 5.2 |
| OS Provided | Android 11 |
| Included Accessories | HDMI cable, RS-232 adapter |
| General | |
| Device Type | Digital signage player |
| Width | 6 in |
| Depth | 5 in |
| Height | 1.3 in |
| Weight | 28.22 oz |
| OS Provided | Android 11 |
| Interfaces | USB 2.0, serial, USB 3.0, HDMI, DisplayPort, Ethernet, IEEE 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Key Features | Digital audio player, digital photo viewer, digital video player, web browsing, interactive whiteboard |
| Features | Power over Ethernet (PoE) |
| Miscellaneous | |
| Included Accessories | HDMI cable, RS-232 adapter |
| Compliant Standards | CB, FCC, MEPS, FCC-ID, US NRTL w/ CA, CA IC |
| Processor | |
| Manufacturer | ARM |
| Installed Qty | 1 |
| Processor Number | Cortex-A55 |
| Number of Cores | Quad-Core |
| RAM | |
| Installed Size | 4 GB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Software | |
| Software Included | Mozilla Firefox, ViewSonic myViewBoard Suite, Signage Manager, Revel Digital, vCastReceiver, EAirplay, Ccast |
| Connectivity | |
| Connections | Serial - RS-232 ¦ USB-C ¦ HDMI input ¦ HDMI output ¦ USB 2.0 ¦ USB 3.0 ¦ LAN ¦ Mini DisplayPort |
| Power Device | |
| Power Source | AC power adapter |
| Output | AC 100-240 V |
| Memory / Storage | |
| Flash Memory Cards Supported | microSD |
| Storage Drive Capacity | 16 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.1 in |
| Shipping Depth | 3.1 in |
| Shipping Height | 7.9 in |
| Shipping Weight | 6.22 lbs |
