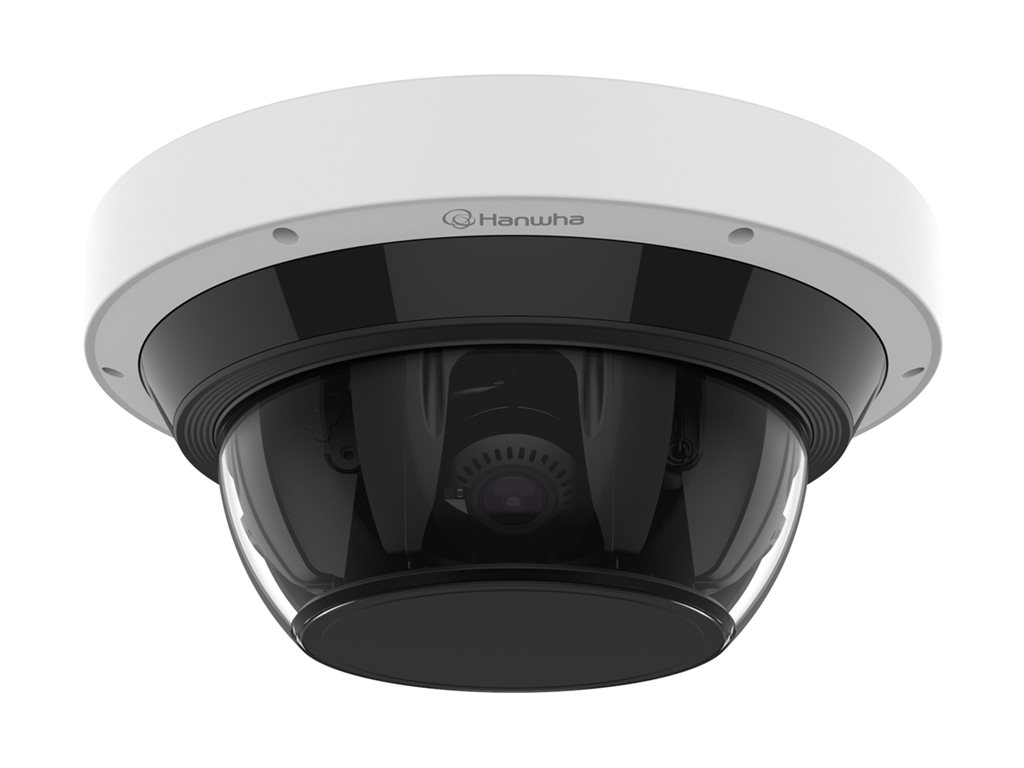

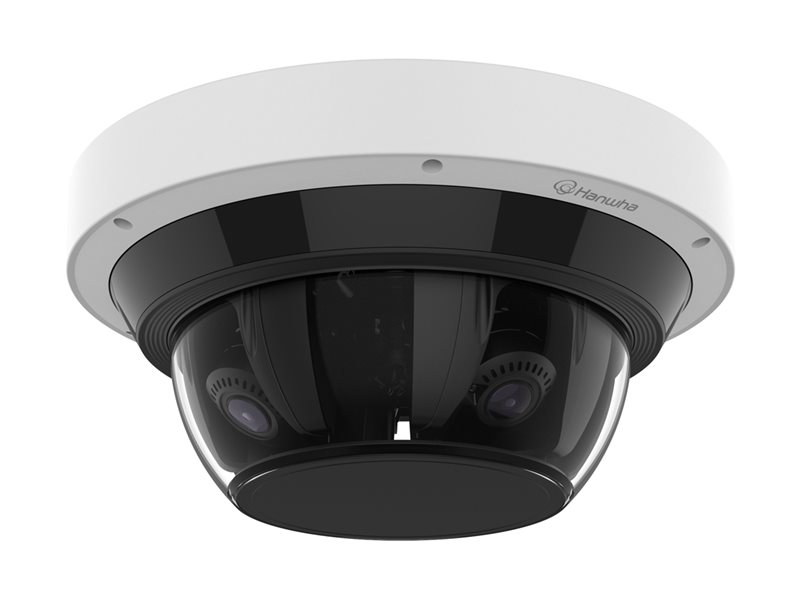

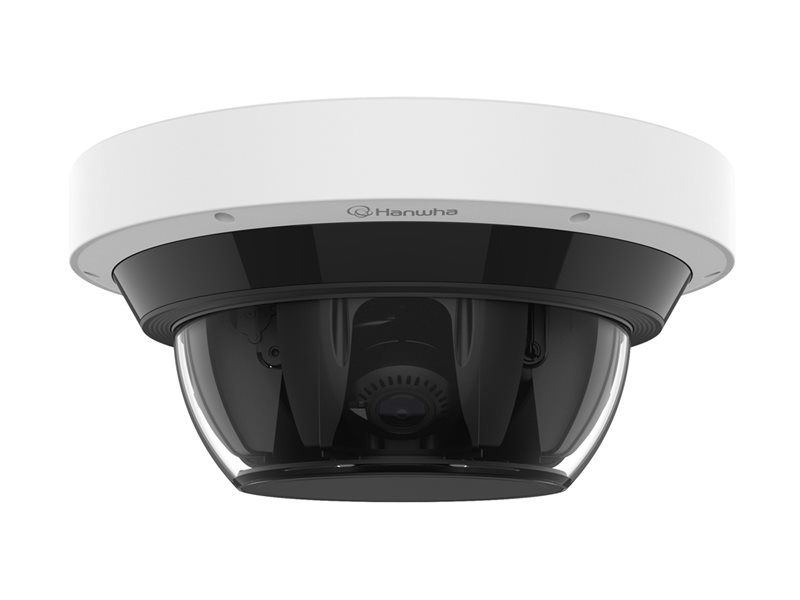

Hanwha Vision - Hanwha Techwin WiseNet P PNM-9085RQZ1
Network surveillance camera - PTZ - dome - dust resistant / water resistant / shock resistant / corrosion resistant - color (Day&Night) - 5 MP - 2560 x 1920 - auto iris - motorized - audio - GbE - MJPEG, H.264, H.265 - High PoE
Hanwha Vision
PNM-9085RQZ1
N/A
0880108921694
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Hanwha Techwin WiseNet P PNM-9085RQZ1 - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt / zoom - dome - dust resistant / water resistant / shock resistant / corrosion resistant |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 12.4 in x 12.4 in x 5.7 in |
| Weight | 11.46 lbs |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2.3 x |
| Max Resolution | 2560 x 1920 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/1.8" - 5 MP |
| Minimum Illumination | 0.11 lux - color - F1.92 - 30 IRE ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.13 mm - 9.4 mm |
| Focus Adjustment | (min distance 4 ft) |
| Lens Iris | F/1.92-2.67 - auto iris |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 35 to 80 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | High PoE |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, video analytics, Defocus Detection, ONVIF (Profile S) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, DORI coverage, IP address filtering, fog detection, motion detection, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, built-in 4 head multi-directional camera, Gain Control, user access log, Automatic White Balance Control (AWC) |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 90% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 12.4 in |
| Depth | 12.4 in |
| Height | 5.7 in |
| Weight | 11.46 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | NEMA Type 4X, IK10, IP66, IEEE 802.1x, EN 62676-4 |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | High PoE |
| Power Device | PoE splitter 45 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% RH |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - dust resistant / water resistant / shock resistant / corrosion resistant |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Minimum Illumination | 0.11 lux - color - F1.92 - 30 IRE ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1600 x 1200, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 2560 x 1920, 1920 x 1080, 640 x 360, 2560 x 1440, 800 x 448 |
| Frame Rate (max) | 30 frames per second |
| RAM | 5 GB |
| Flash Memory | 1280 MB |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, video analytics, Defocus Detection, ONVIF (Profile S) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, DORI coverage, IP address filtering, fog detection, motion detection, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, built-in 4 head multi-directional camera, Gain Control, user access log, Automatic White Balance Control (AWC) |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 2.3 x |
| Focal Length | 4.13 mm - 9.4 mm |
| Lens Iris | F/1.92-2.67 auto iris |
| Min Focus Distance | 4 ft |
| Horizontal Field of View (degree) | 37.34 - 87.58 |
| Vertical Field of View (degree) | 28.04 - 64.58 |
| Diagonal Field of View (degree) | 46.85 - 112.46 |
| Image Sensor | |
| Type | 5 MP CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, PIM-SM, LLDP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 360 |
| Tilting | |
| Range (degree) | 35 to 80 |
