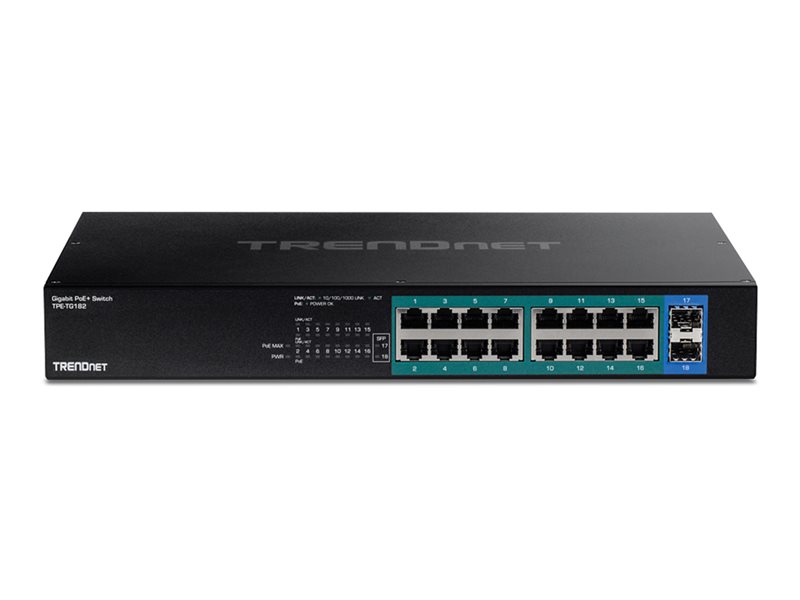

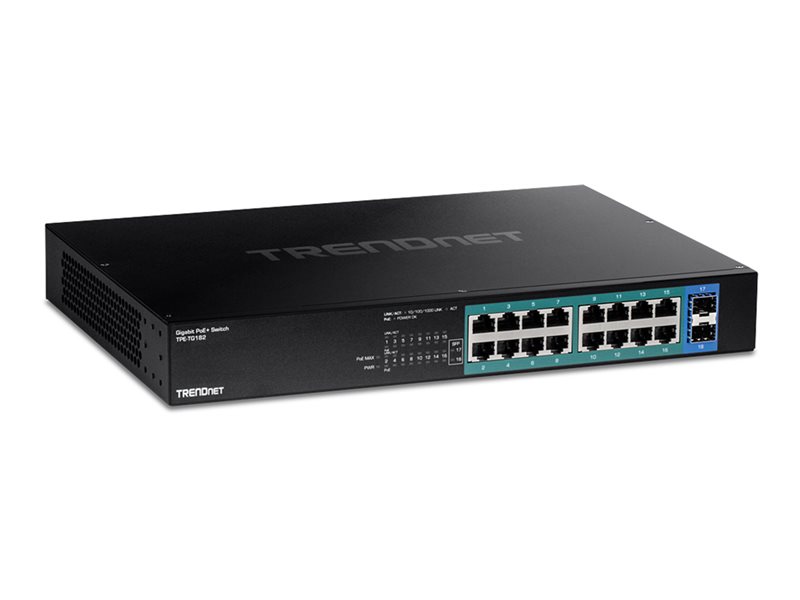

TRENDnet - TRENDnet TPE TG182
Switch - 16 x 10/100/1000 (PoE+) + 2 x SFP - rack-mountable - PoE+ (240 W) - TAA Compliant
TRENDnet
TPE-TG182
N/A
0710931162349
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TPE TG182 - switch - 18 ports - rack-mountable - TAA Compliant |
| Device Type | Switch - 18 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 36 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps ¦ Buffer memory: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Features | Half duplex mode, full duplex mode, GREENnet technology, over-current protection, short circuit protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 12.8 in x 9.1 in x 1.7 in |
| Weight | 5.51 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 18 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 36 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps ¦ Buffer memory: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Features | Half duplex mode, full duplex mode, GREENnet technology, over-current protection, short circuit protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x Gigabit LAN SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 659,157 hours |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 40 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 12.8 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.51 lbs |
