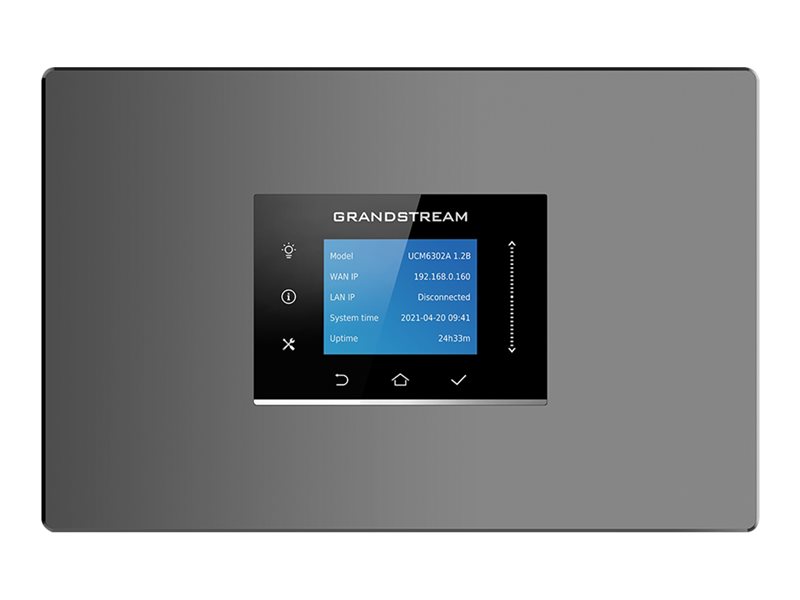

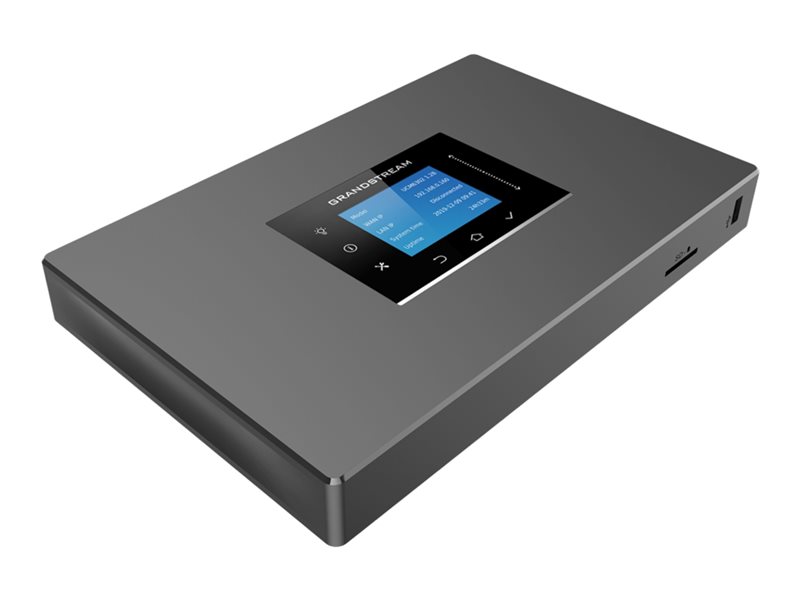

Grandstream - Grandstream UCM6302A
IP-PBX - 2 FXO Ports - 2 FXS Ports - 3 x 10/100/1000
Grandstream
UCM6302A
N/A
6947273703556
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Grandstream UCM6302A IP-PBX |
| Product Type | IP-PBX |
| FXO Ports Qty | 2 |
| FXS Ports Qty | 2 |
| Network Ports | 3 x 10/100/1000 |
| Call Services | Call forwarding, call transfer, call waiting, caller ID, do not disturb, voice mail, Call Recording, Blacklist, Call Back, Call Routing, Follow me, Call Parking, Whitelist, Music on Hold |
| VoIP Protocols | SIP, SRTP |
| Capacity | Concurrent calls: 75 ¦ Users: 500 ¦ Maximum concurrent SRTP calls: 75 |
| Power Over Ethernet (PoE) | PoE+ |
| Voltage Required | 50/60 Hz |
| Dimensions | 10.6 in x 6.9 in x 1.4 in |
| Weight | 25.57 oz |
| General | |
| Product Type | IP-PBX |
| FXO Ports Qty | 2 |
| FXS Ports Qty | 2 |
| Network Ports | 3 x 10/100/1000 |
| Capacity | Concurrent calls: 75 ¦ Users: 500 ¦ Maximum concurrent SRTP calls: 75 |
| Call Services | Call forwarding, call transfer, call waiting, caller ID, do not disturb, voice mail, Call Recording, Blacklist, Call Back, Call Routing, Follow me, Call Parking, Whitelist, Music on Hold |
| Features | QoS, LDAP, wall-mountable, built-in SD card reader, NAT support, LCD display |
| Miscellaneous | |
| Encryption Algorithm | TLS |
| Authentication Method | Secure Shell (SSH), LDAP |
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, CS-03, UL 60950-1, FCC CFR47 Part 15 B, TLS, ITU-T K.21, EN 62368-1, EN 55032, UL 62368-1, ES 203 021, EN 55035, SRTP, AS/NZS CISPR 32, AS/NZS 62368.1 |
| Networking | |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, DHCP, DNS, DDNS, RTP, RTCP, HTTP, HTTPs, IPv6 |
| Power Over Ethernet (PoE) | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Power Device | |
| Type | External power adapter |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 6.9 in |
| Height | 1.4 in |
| Weight | 25.57 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.69 lbs |
| IP Telephony | |
| VoIP Protocols | SIP, SRTP |
| Voice Codecs | G.722, G.723.1, G.711u, G.711a, iLBC, T.38, G.722.1, G.722.1c, Opus, GSM, G.729A/B, G.726-32 |
| Expansion & Connectivity | |
| Interfaces | 2 x FXO ¦ 2 x FXS ¦ 3 x 1000Base-T (PoE+) ¦ USB 3.0 ¦ USB 2.0 |
