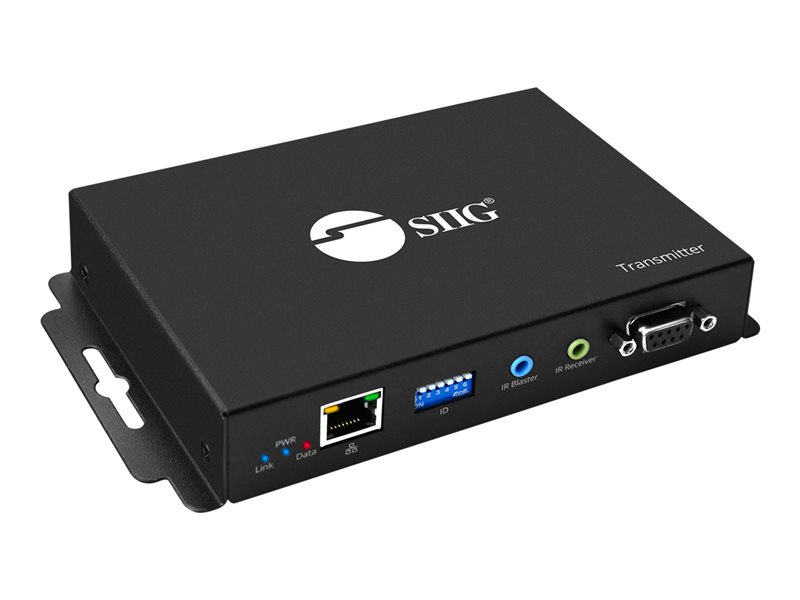

SIIG - SIIG HDMI Over IP Matrix and Video Wall
Transmitter - Audio/video over IP encoder / scaler / audio embedder
SIIG
CE-H25211-S1
N/A
0662774042879
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | SIIG HDMI Over IP Matrix and Video Wall - Transmitter audio/video over IP encoder / scaler / audio embedder |
| Type | Audio/video over IP encoder / scaler / audio embedder |
| Dimensions (WxDxH) | 7.1 in - 4 in - 1.1 in |
| Weight | 17.28 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Audio/video over IP encoder / scaler / audio embedder |
| Width | 7.1 in |
| Depth | 4 in |
| Height | 1.1 in |
| Weight | 17.28 oz |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Low Voltage Power | DC 5 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (1) x IR transmitter |
| Terminals | |

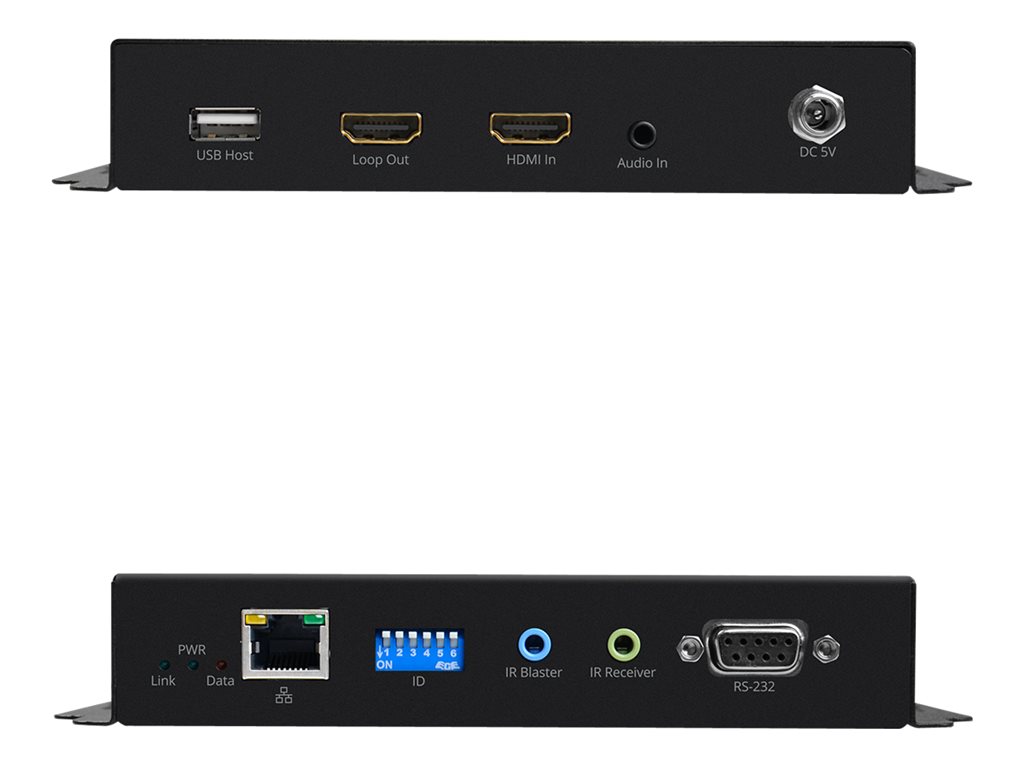

| Terminals | (1) x HDMI input - 19 pin HDMI Type A - with loop through ¦ (1) x audio line-in - mini-phone stereo 3.5 mm ¦ (1) x network - RJ-45 - PoE ¦ (1) x serial - 9 pin D-Sub (DB-9) - RS-232 ¦ (1) x infrared input - mini-phone 3.5 mm ¦ (1) x infrared output - mini-phone 3.5 mm ¦ (1) x USB 2.0 - 4 pin USB type A |
| Studio & Production Equipment | |
| Features | Power Over Ethernet support, HDCP 2.2 compliant, HDR (High Dynamic Range) support, 4K60 4:4:4 signal support |
